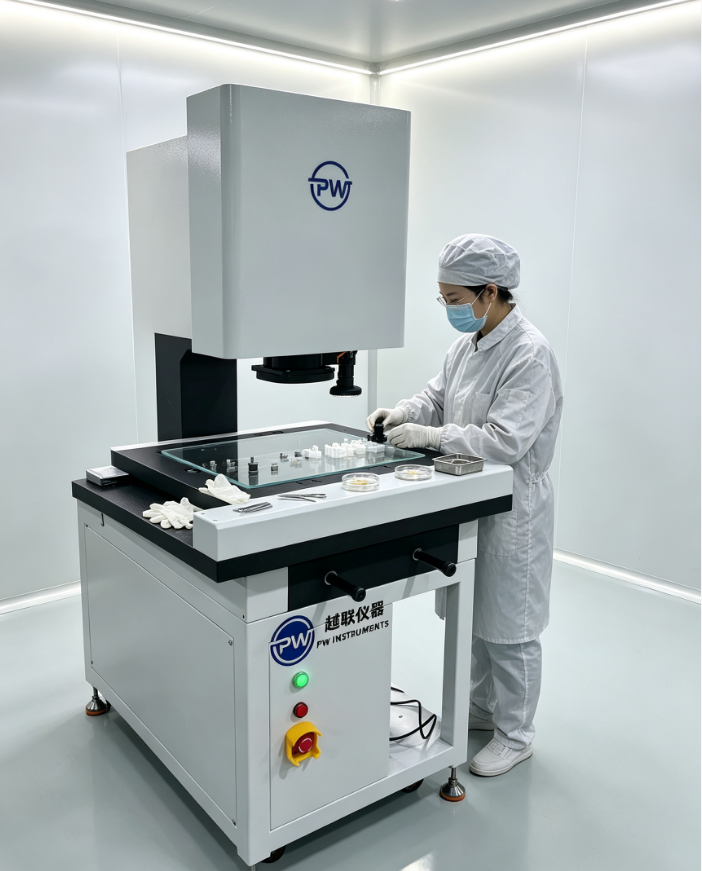

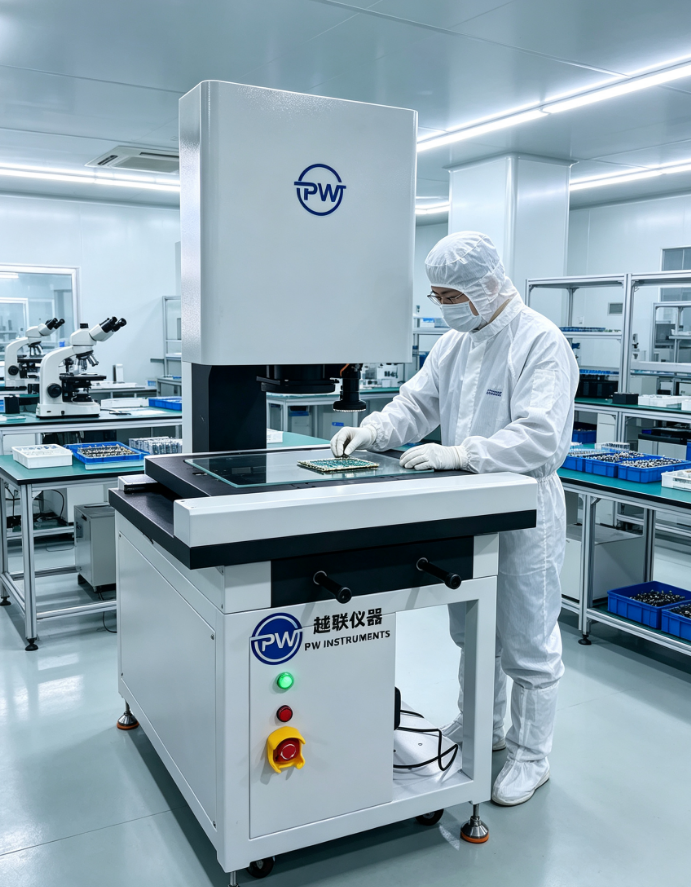

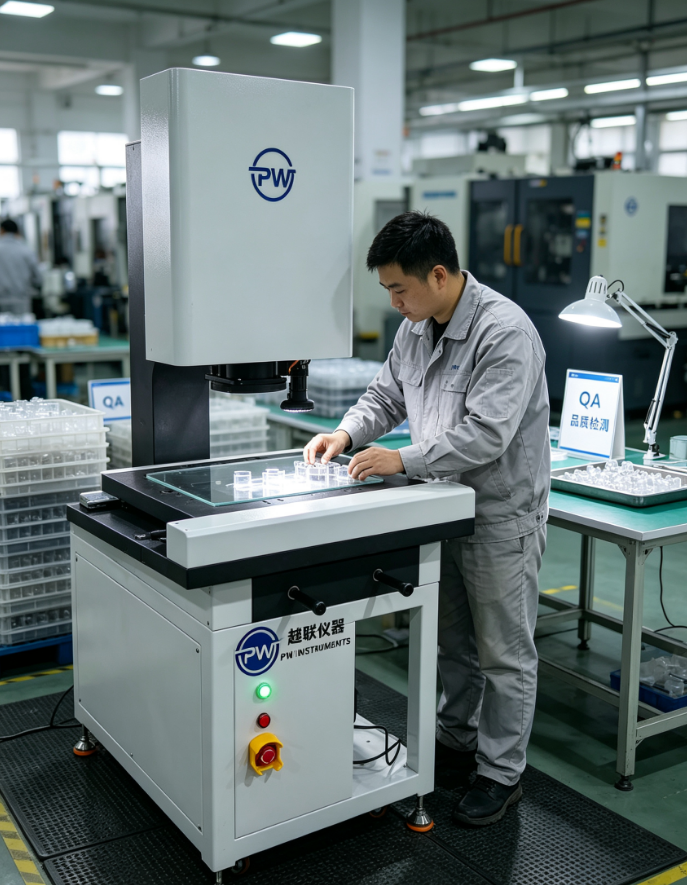

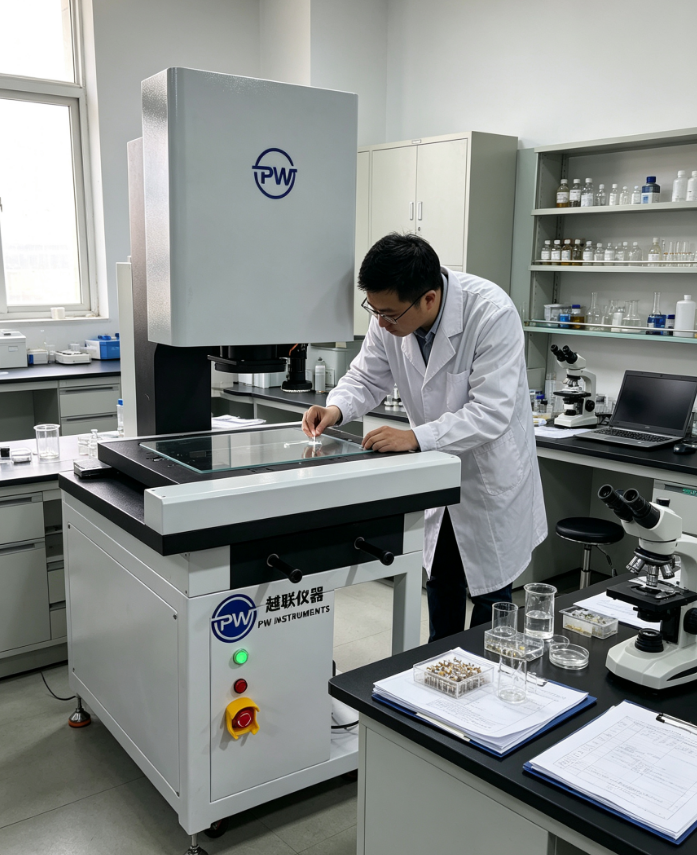

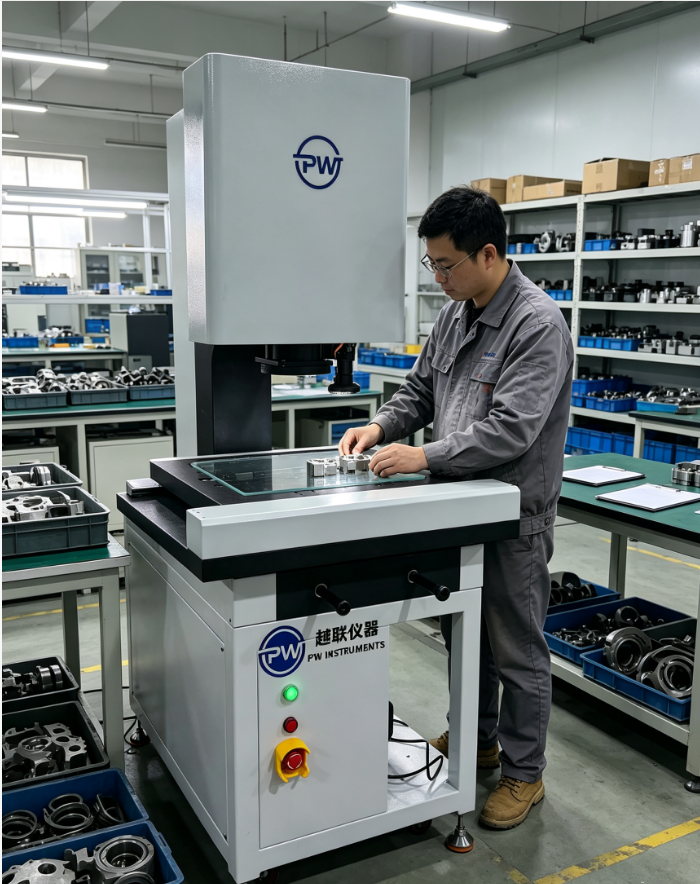

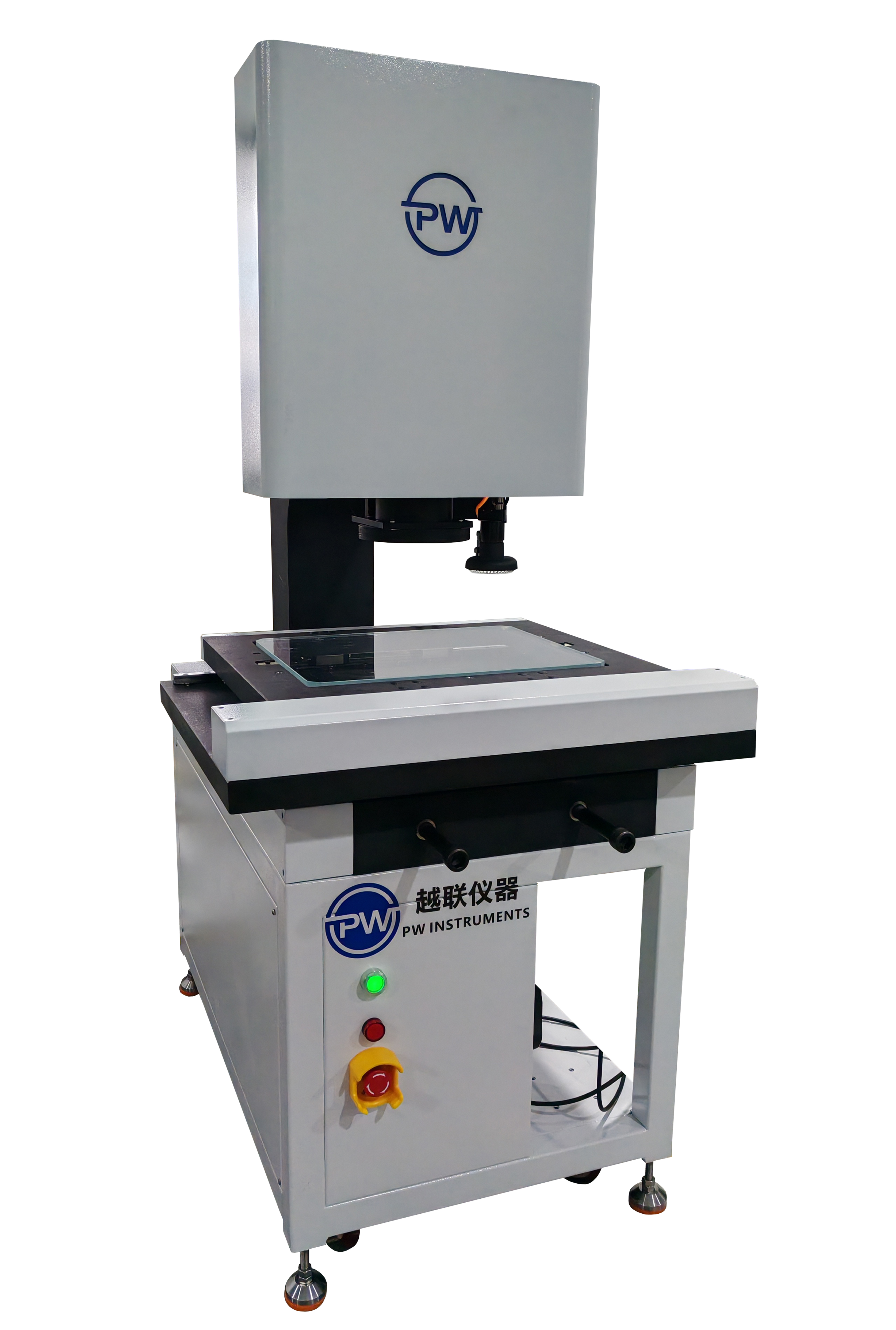

PW-OAP432D Automatic Vision Measuring Machine

Product Advantages

• One-Click Instant Measurement for Faster Batch Testing
• Enables fast and precise batch measurement under CNC mode.
• Parts can be placed randomly without fixture positioning; the system automatically establishes workpiece coordinate system to finish measurement with one click.
• Dual-lens setup: high-efficiency inspection by telecentric wide-FOV lens plus high-precision measurement via motorized zoom lens, balancing customer demands on efficiency and accuracy.

Precise Calculation & Outstanding Stability

• Equipped with high-resolution lenses, adopting 1% sub-pixel image processing and high-accuracy arithmetic algorithms.
• Auto-focus function eliminates manual operation errors and ensures consistent repeated focusing performance.
• Automatically identifies measured features to deliver consistent and stable measurement results every time.

Large-Travel Motion Platform Construction

• Extra-large travel design breaks the measuring range limitation of conventional flash measuring machines.
• Rigid precision marble base guarantees superior stability and high accuracy.
• Fitted with precision linear guide rails, transmission assemblies and servo control system.
• Full-auto programmable 3-axis inspection supports batch measurement of complex part features.

User-Friendly & Easy Operation

• Short learning curve with no extensive professional training required.
• Intuitive operation interface for quick parameter setup and measurement by all operators.
• Real-time dimensional deviation evaluation on-site; one-click generation of statistical analysis and inspection reports.

Versatile Functions & Auto Report Generation

• Comes with over 80 feature extraction & analysis tools plus multiple dedicated measuring modules.
• Supports automatic SPC analysis report export.
• Powerful remote data transmission and output capability.

Measuring Functions

• Measuring Tools:Edge extraction via scanning / multi-segment / circular tracing / elliptic tracing, frame-selected contour extraction, focus point capture, nearest-point pickup, etc.
• Available Geometric Dimensions: Point, straight line, circle (center coordinate, radius, diameter), arc, center, angle, distance, line width; hole position, hole diameter, hole quantity; hole-to-hole distance, hole-to-edge distance, arc center-to-hole distance, arc center-to-edge distance, arc peak-to-arc peak distance, intersection-to-intersection distance and more.
• Feature Construction:Intersection, center point, extreme point, endpoint, two-point connecting line, parallel line, perpendicular line, tangent, bisector, center line, segment merging; circle by specified radius, inscribed circle of three lines, inscribed circle of two lines with defined radius, etc.
• Geometric Tolerance Evaluation:Straightness, roundness, profile tolerance, position tolerance, flatness, symmetry, perpendicularity, concentricity, parallelism and other GD&T items.
• Coordinate System: Machine coordinate system; workpiece coordinate system built by point-line / two-point X-axis / two-line alignment; image registration coordinate system; coordinate system available for translation, rotation and manual fine-tuning.
• Quick Special Tools: Fast measurement for fillet(R), horizontal pitch, circular pitch, mesh, slotted hole, contour comparison, spring, O-ring and other special profiles.
• Additional supports: batch tolerance setup, tolerance grade classification and customized color management.

Data Export Functions

• Export measurement reports in Excel, Word and TXT formats.
• Enable import & export of AutoCAD files.
• Real-time data output to customizable Excel templates.
• Generate automatic SPC reports containing statistical parameters (CA, PPK, CPK, PP etc.) and control charts: X-R chart, X-S chart, Me-R chart, Xm-Rm chart.
• Compatible with QDAS data transmission and customizable remote data interface docking.
