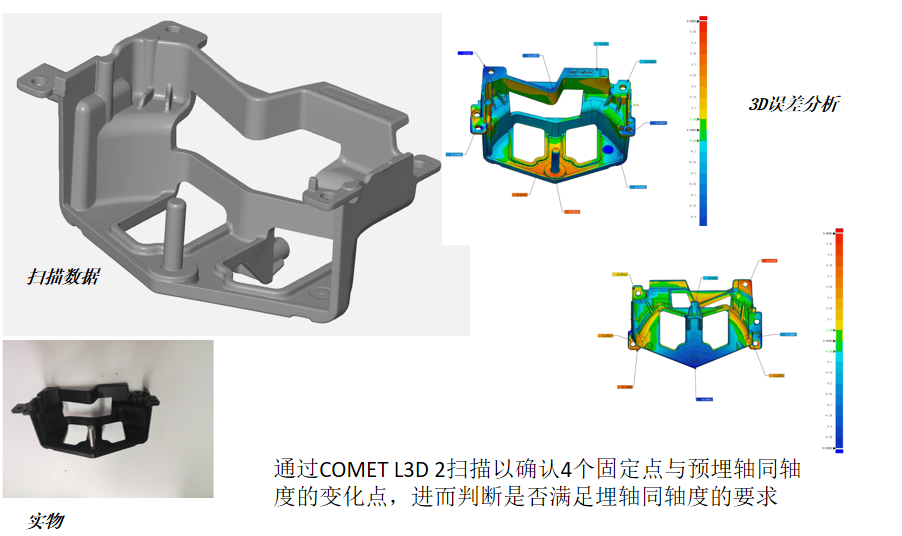

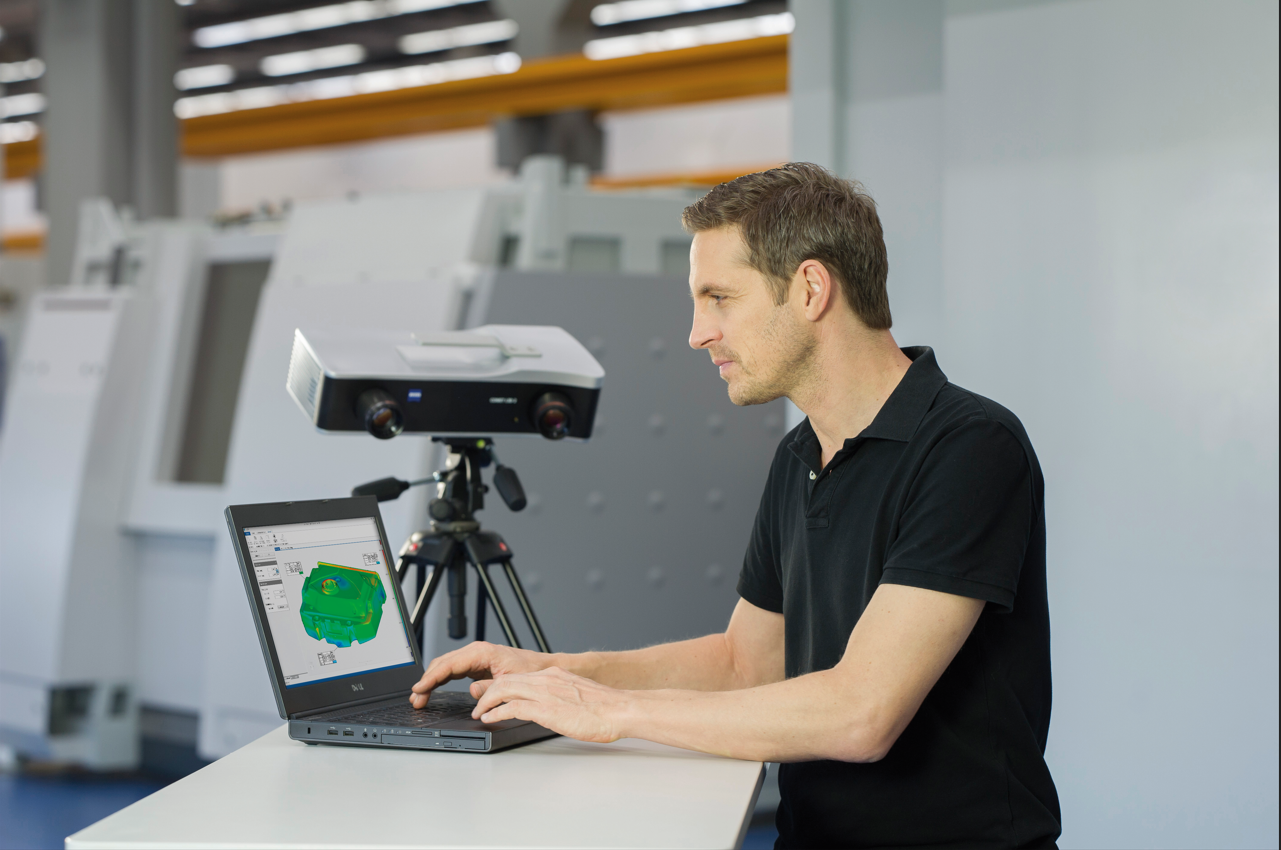

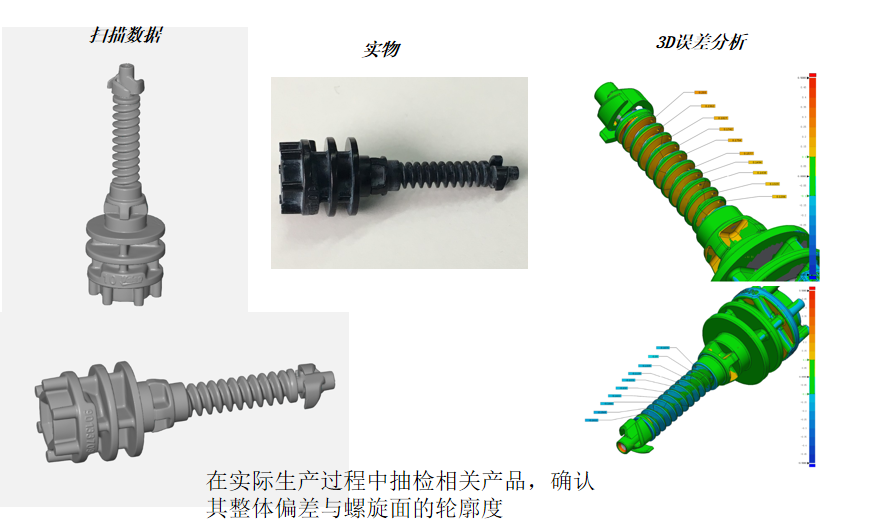

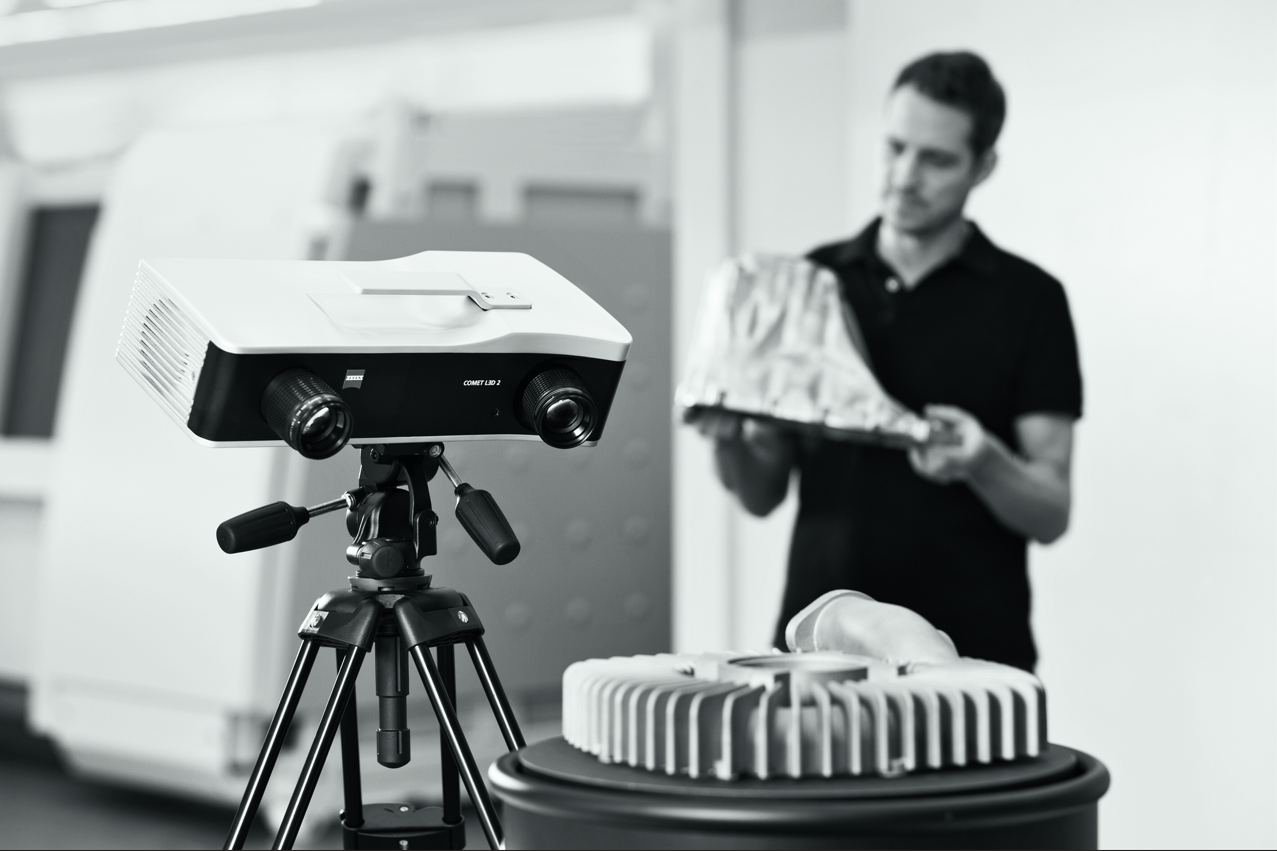

Compact 3D sensor, offering great flexibility, high measuring speed and excellent performance.
The system includes:
• Compact sensor - With integrated 5M camera with GigE interface - Projector unit with BlueLED technology - Laser pointers for easy adjustment of measuring distance - High-quality industrial connector - Integrated temperature sensors - Integrated main controller

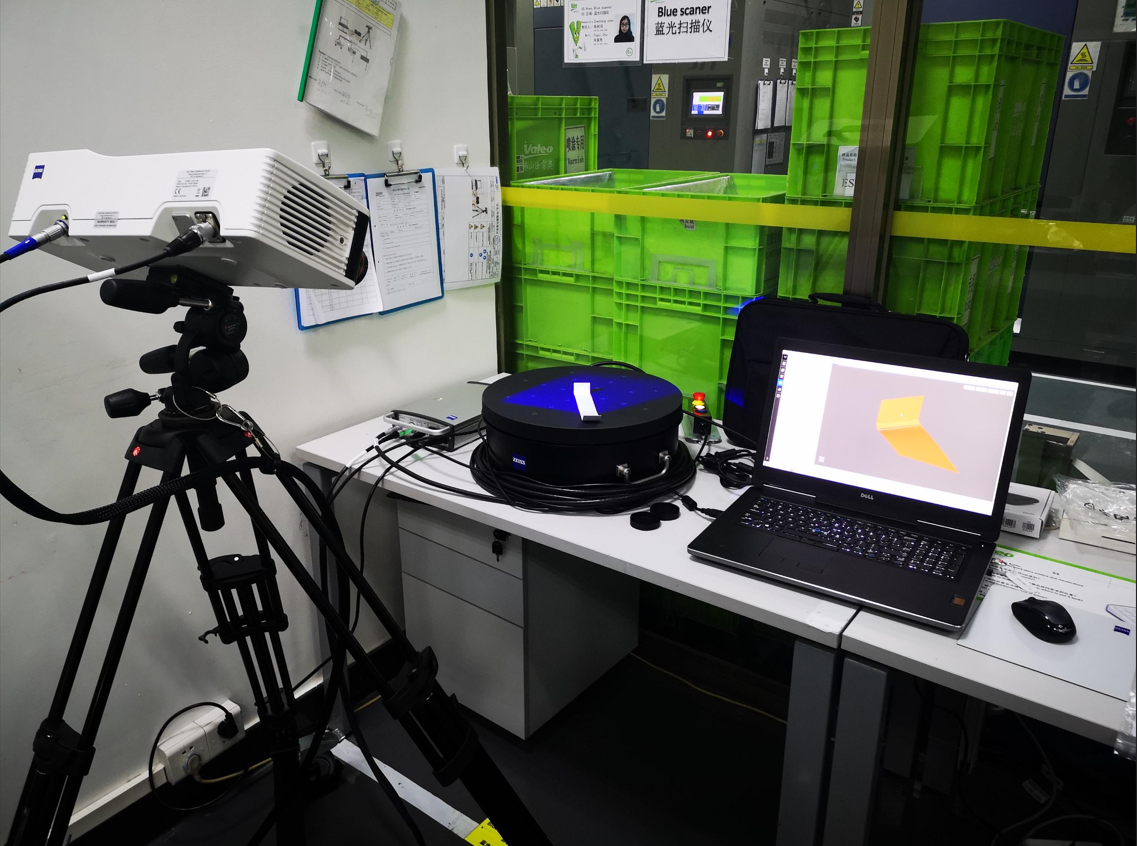

• CANbus controller for sensor and accessories, e.g. COMETrotary • Power supply with integrated CANbus interface • 6 m sensor cable, 12 m optionally available • Transport case - PELI™ with wheels, telescope handle and foam inlay • colin3D base and INSPECT base software • Acceptance protocol for each field-of-view • Software CD including documentation • Dongle software protection
Technical specifications ZEISS COMET LED 2 5M
Camera: CCD with 2448 x 2050 pixel Projector unit: digital Illumination: LED light source (BlueLED technology) Working distance / stand-off: 760 mm Fastest measuring time: ~ 1 second Protection class: IP 20 Cable length: 6 m, optional 12 m Power consumption during measurement: approx. 200 W Sensor dimensions: 415 x 180 x 136 mm (width x depth x height) Weight: 5.2 kg Operating temperature: + 10° C … + 35° C Temperature window for measurement operation: ± 3.5° C Storage temperature: 0° C … + 50° C Relative air humidity: 20 % ... 80 % (non-condensing) Controller operating voltage: wide-range input 100 - 240V; 50 - 60 Hz
Technical specification FOV´s
The delivered FOV includes(optional):
- camera lens - projector lens - calibration certificate - calibration plate (depends on FOV)
45 FOV:
Resolution: 2448 x 2050 Measuring volume (x * y * z): 45 x 38 x 30 mm³ Measuring point distance (x, y): 0,018 mm Measuring time: ~1 sec. Measuring distance (z): 760 mm
75 FOV:
Resolution: 2448 x 2050 Measuring volume (x * y * z): 74 x 62 x 45 mm³ Measuring point distance (x, y): 0,030 mm Measuring time: ~1 sec. Measuring distance (z): 760 mm
100 FOV: Resolution: 2448 x 2050 Measuring volume (x * y * z): 118 x 98 x 60 mm³ Measuring point distance (x, y): 0,048 mm Measuring time: ~1 sec. Measuring distance (z): 760 mm
250 FOV:
Resolution: 2448 x 2050 Measuring volume (x * y * z): 255 x 211 x 140 mm³ Measuring point distance (x, y): 0,105 mm Measuring time: ~1 sec. Measuring distance (z): 760 mm
500 FOV:
Resolution: 2448 x 2050 Measuring volume (x * y * z): 481 x 404 x 250 mm³ Measuring point distance (x, y): 0,196 mm Measuring time: ~1 sec. Measuring distance (z): 760 mm
